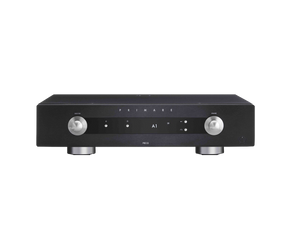

PRE35 Prisma is based on a fully balanced stereo preamplifier, featuring dual XLR inputs and outputs, with modular construction allowing for sophisticated DAC and Prisma network modules to be added to the analog preamplifier at any time.
Technology
In addition to fully balanced circuitry, with dual XLR inputs and outputs, PRE35 Prisma includes a DM35 full-featured DAC stage enabling up to PCM 768kHz/32bit and DSD 256 conversion, as well as Prisma connectivity and control, and WiSA high resolution wireless speaker connection technology.
Prisma
Prisma, provides multi-room/multi-zone connectivity and control for playback of stored and streamed media, wired or wireless, all managed from any mobile device through a dedicated system control app. In addition to Bluetooth, AirPlay, and Spotify Connect, Prisma features Chromecast built-in, a unique streaming portal allowing effortless direct connection to hundreds of streaming applications, including Roon, TIDAL HiFi, Qobuz, Deezer, TuneIn Radio and many others, for the best possible performance and user experience.
Technical Specifications
Preamplifier
- Analogue Inputs: 2 pair XLR (L&R) 3 pair RCA (L&R)
- Input Impedance: RCA 15kΩ; XLR 30kΩ
- Preamplifier Output: 2 pair XLR (L&R), 1 pair RCA (L&R)
- Line Output: 1 pair RCA (L&R)
- Output Impedance: Pre: RCA 100Ω; XLR 400Ω, Line: 100Ω
- Frequency Response: 20Hz – 20kHz +0.1/-0.1dB
- THD + N: < 0.01%, 20Hz – 20kHz
- Signal to Noise: >105 dB
- Gain: RCA in / RCA out: 16.5dB, XLR in / XLR out: 16.5dB, RCA in / XLR out: 22.5dB, XLR in / RCA out 10.5dB
- WiSA high resolution wireless speaker output
DM-35 DAC
- Chip set: AKM AK4497
- Toslink In: 4 x TOSLINK (96 kHz)
- RCA In: 2 x 44.1-768kHz / 16 -32bit)
- 1 x USB-B (PCM 192 kHz / DSD 128)
- Out: RCA (192kHz native, 48/96kHz)
Prisma
- WAV, LPCM, FLAC, ALAC, MP3, MP4
- (AAC), WMA, OGG, DSD
- Sample rates: 24 - 192 kHz
- WLAN: IEEE 802.11 a/b/g/n/ac (2.4/5gHz)
- Inputs USB-A, 2 x LAN, WLAN (192 kHz)
- Streaming: Bluetooth/WiFi/AirPlay/Bluetooth
- Chromecast: built-in
- Spotify Connect: Yes
- DLNA/UPnP
General
- Finish Options: Black and Titanium
- Control: C25 remote, RS232; IR in / out; Trigger out
- Consumption: Standby/Operate, 0.5/42W
- Dimensions (WHD): 430 x 106 x 420mm
- Weight: 11.3Kg
